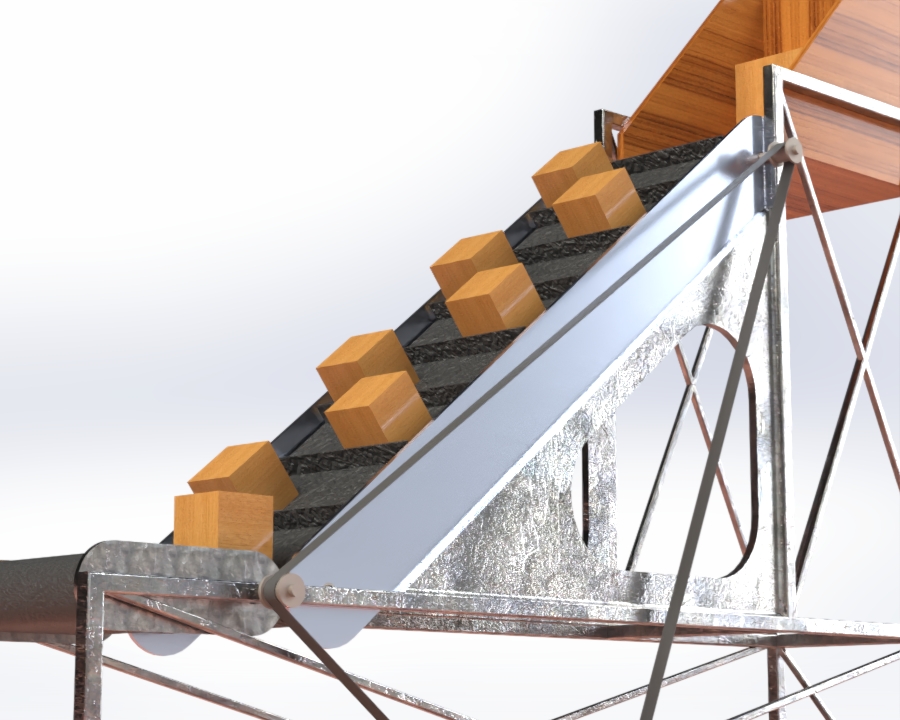

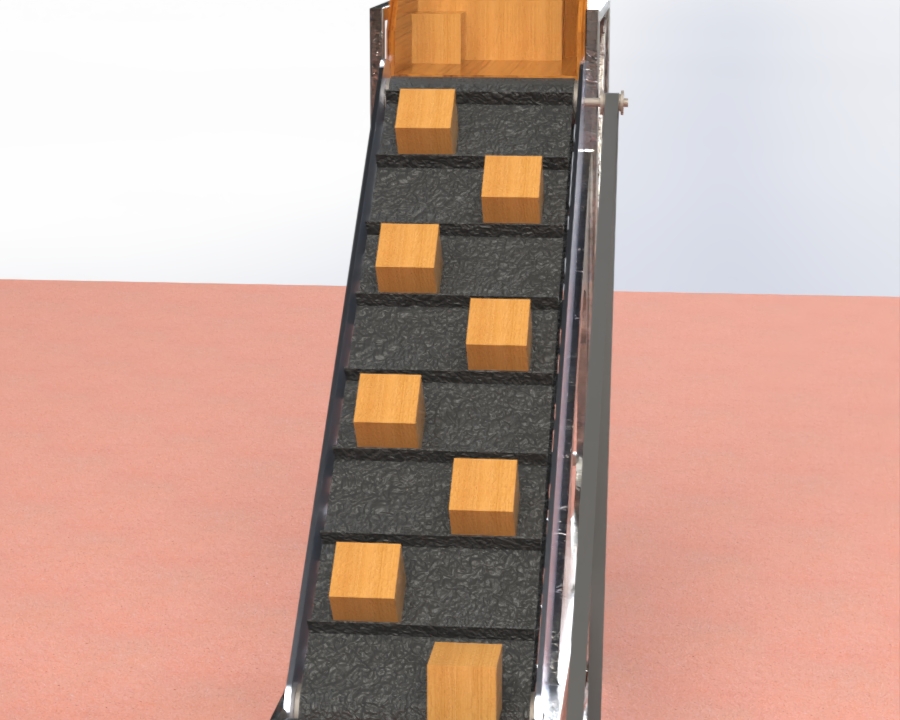

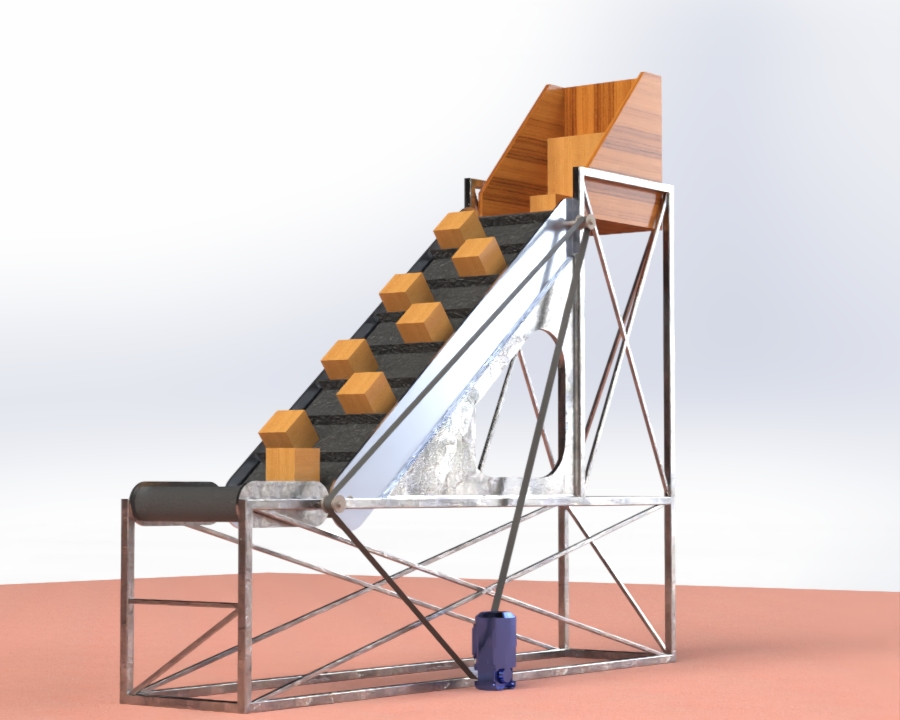

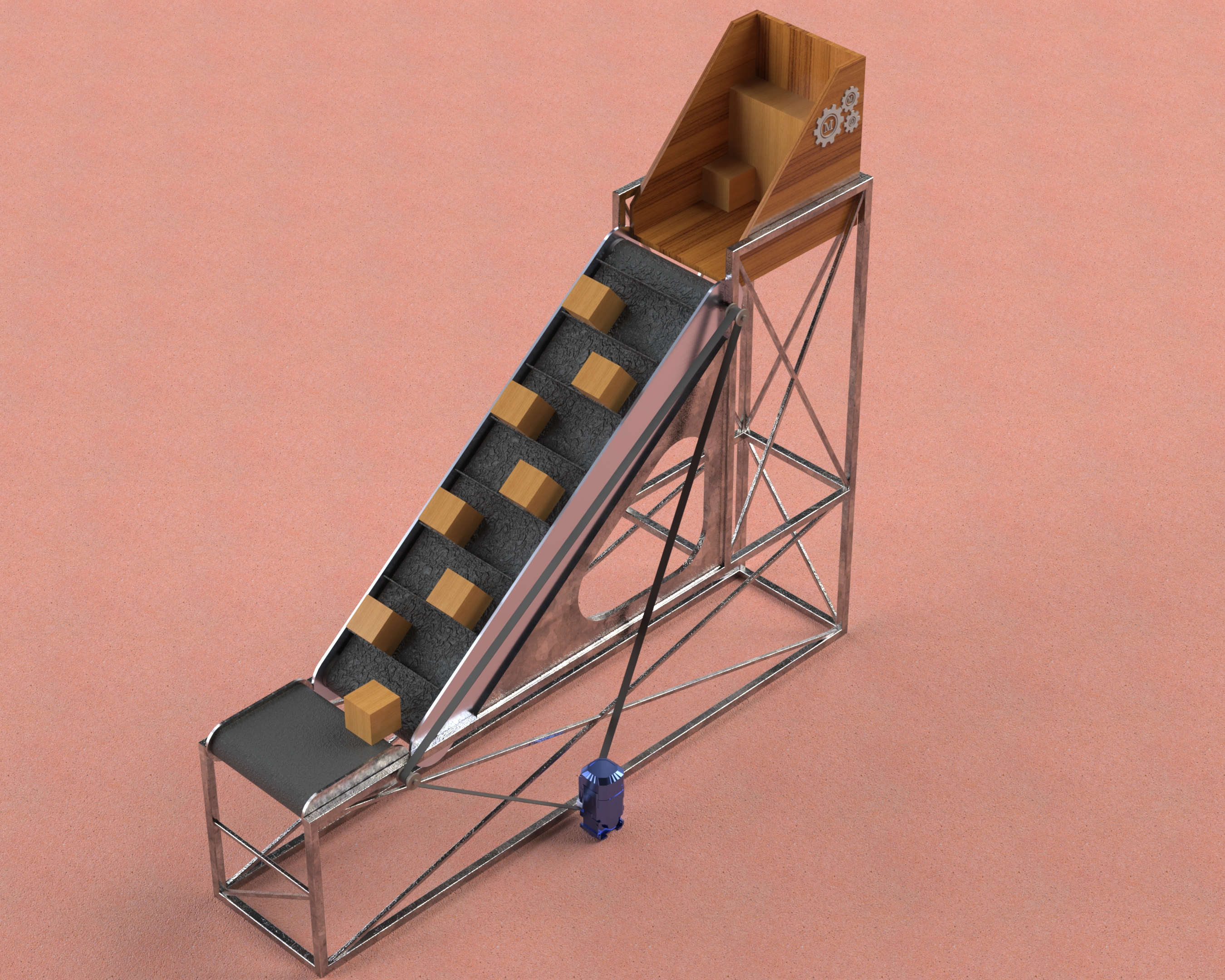

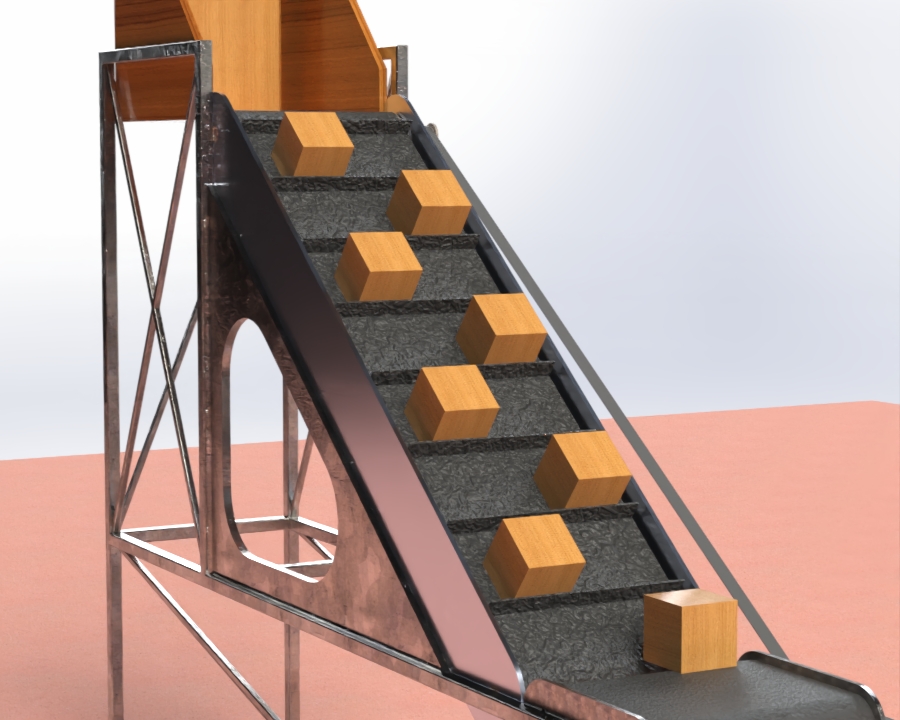

Industrial Incline Conveyor System

Mechanical Drive & Structural Framework Design:

Engineered for elevation transfer of bulk goods and manufactured packages in automated processing plants. The study analyzed incline friction resistance, cleated belt profile selection to prevent material rollback, take-up screw tensioning mechanism, and electric gearmotor torque requirements.

Key Engineering Highlights:

• Structural steel truss framework sized against dynamic deflection per AISC 360.
• Integrated mechanical backstop anti-rollback clutch on head pulley shaft.
• Complete 2D manufacturing blueprints for sheet metal side guides and welded truss members.
