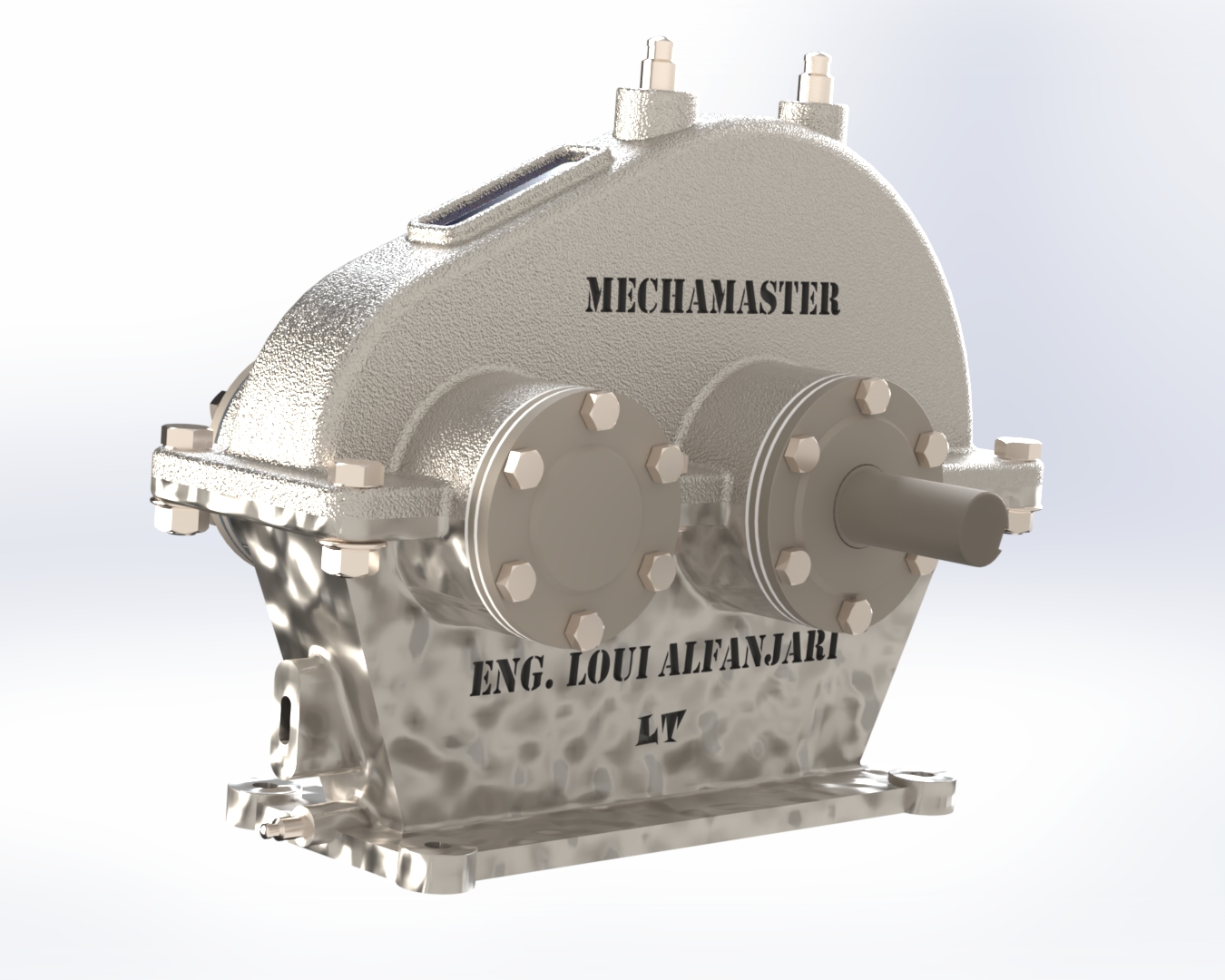

High-Torque Single Gear Box Assembly

Gear Tooth Contact & Structural Stress Sizing:

Gear tooth strength was evaluated using Lewis and AGMA bending stress methods, while surface durability was assessed through Hertzian contact stress considerations. The gearbox utilizes a pair of spur gears, providing direct and reliable power transmission with a simple and robust configuration. The spur gear arrangement eliminates the axial thrust generated by helical gearing, simplifying shaft and bearing loading while maintaining effective torque transmission.

Key Engineering Highlights:

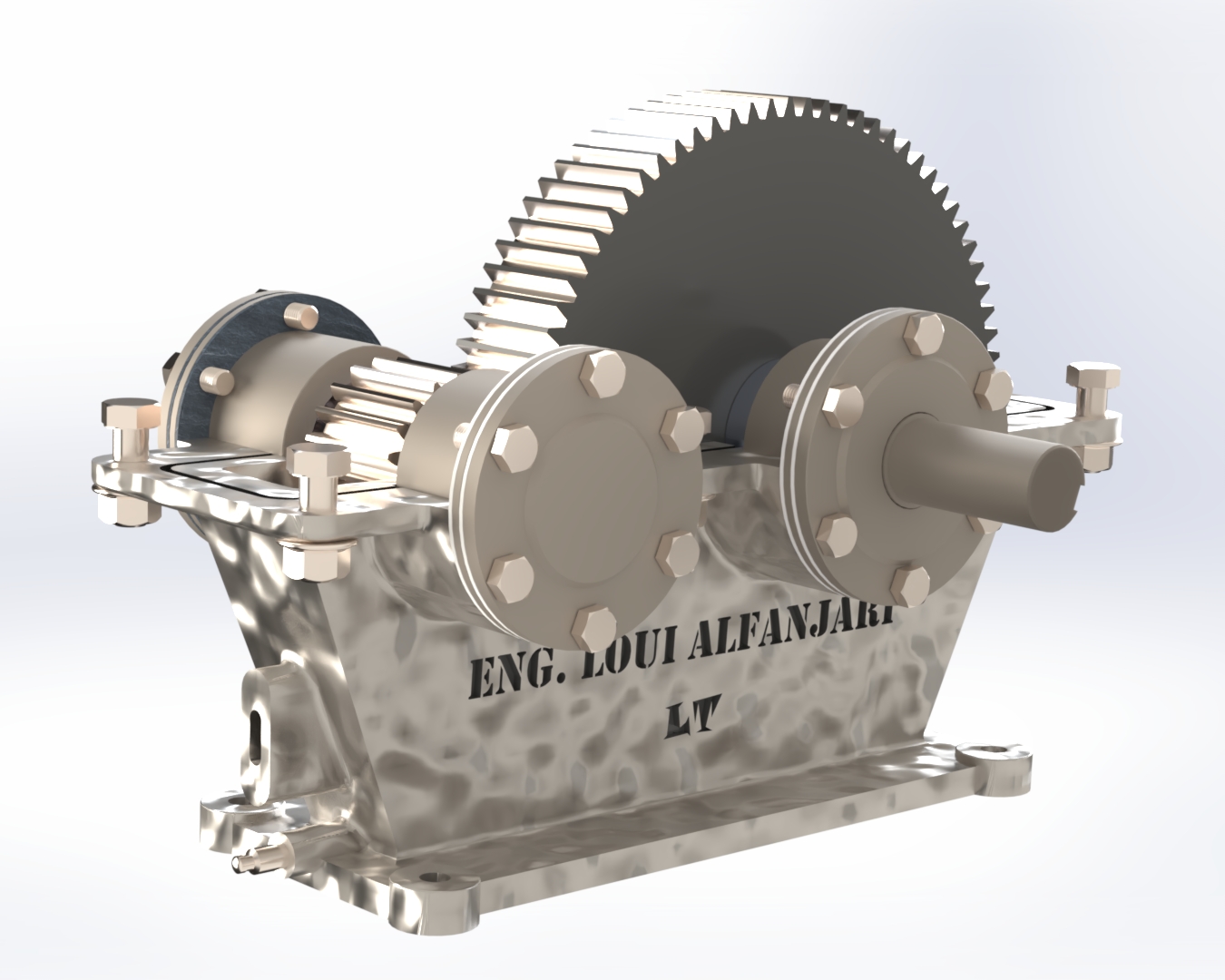

• Spur gear set designed for reliable torque transmission and straightforward mechanical operation.

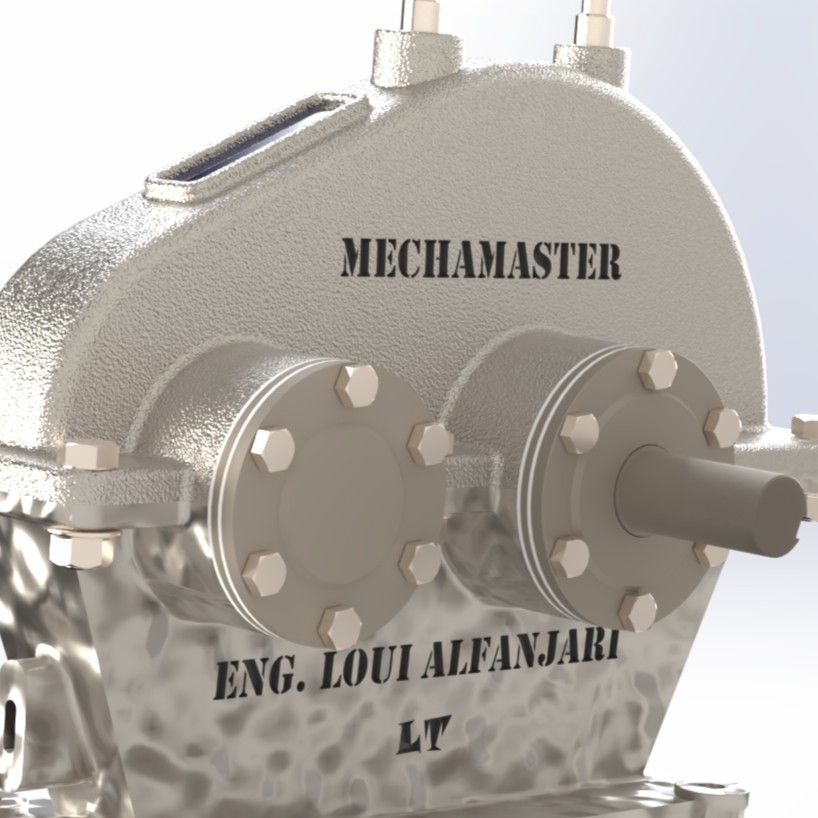

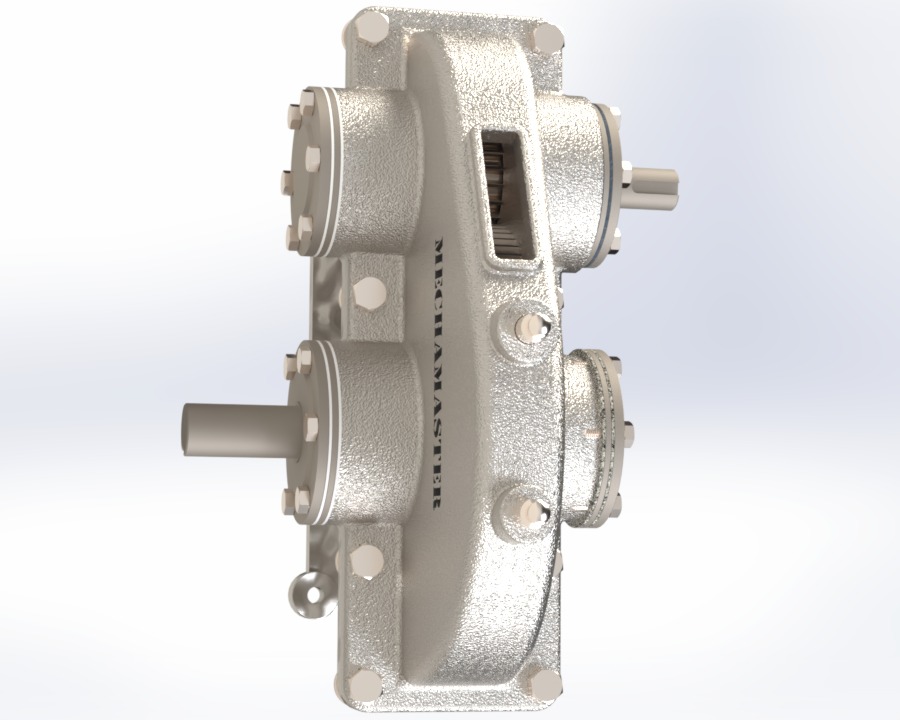

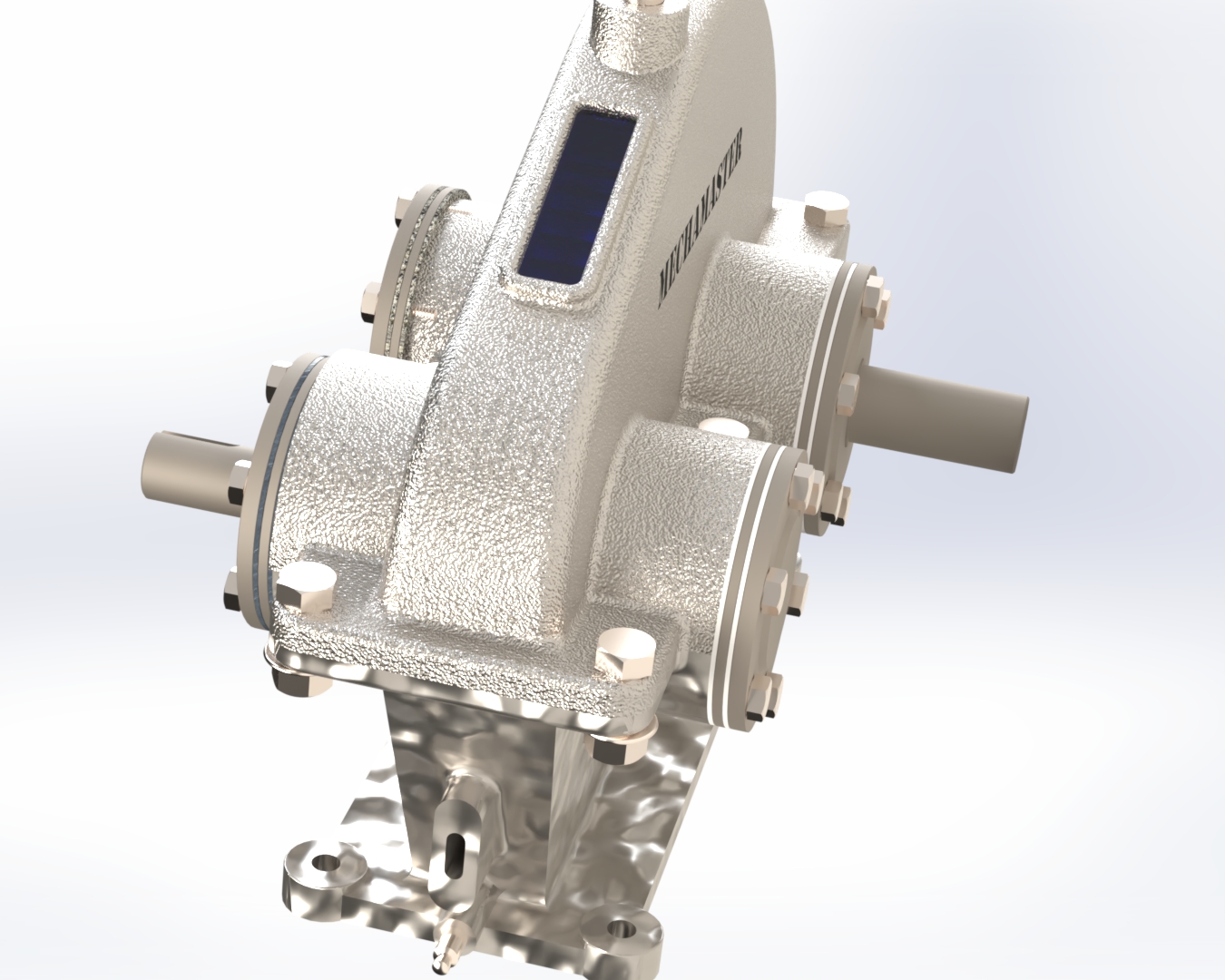

• Rigid gearbox casing designed to provide structural support and maintain gear and shaft alignment under operating loads.

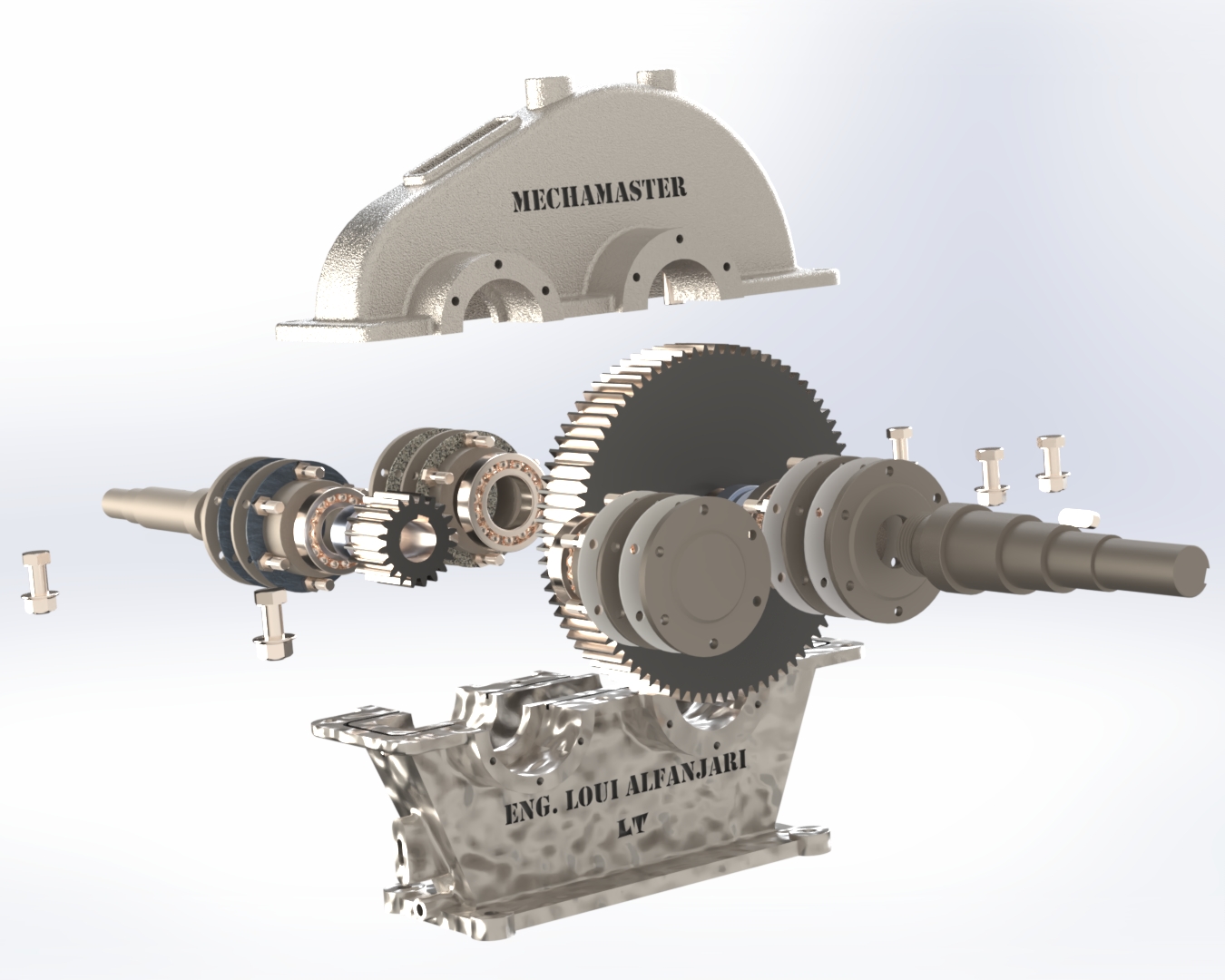

• Detailed mechanical design including shaft geometry, bearing locations, gear mounting features, and assembly interfaces.
